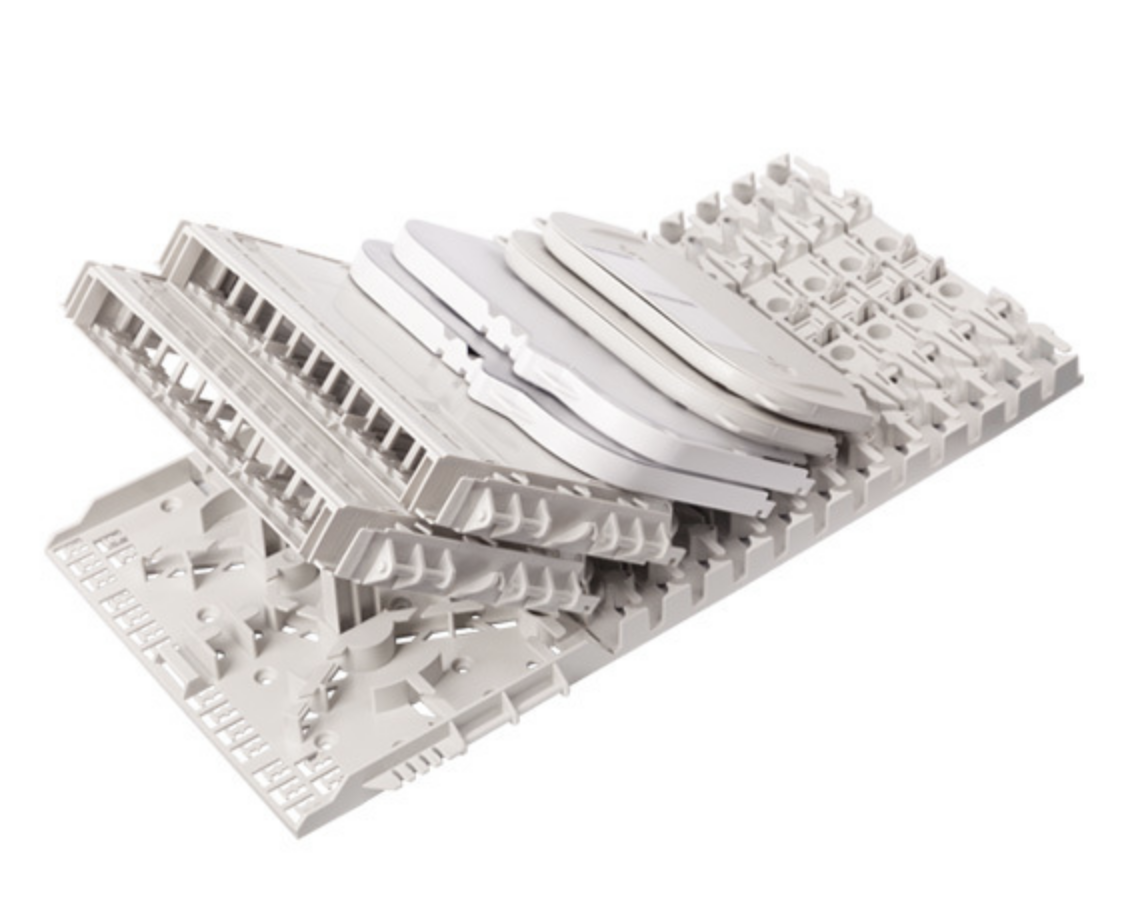

FiberRoad Splice Tray System

The FibeRoad system can be used in the MDB M Optical Box , Fibre Boxes, Fibre Distribution Hubs - FDHs or Data Cabinets. It supports all types of firer optic networks and helps create all configurations of fibre distribution and direct termination of connectors. It is ideal for GPON.

Download data PDF





  • Possibility of cascade solution for saving place
  • Compatible to trays KM 4 (24 splices), KM 5 (12 SC), KM 6 mini (24 splices)
  • Possibility to mix different trays in one box
  • Modular capacity increasing by segments
  • Patching solution in the stacking system
  • Possibility of placing the splitters away from trays
  • Space for the placement of unused fibers
  • Compatible to fibers in secondary sheath (0,9 mm)

FiberRoad BASE KM P 495529

Add to cart

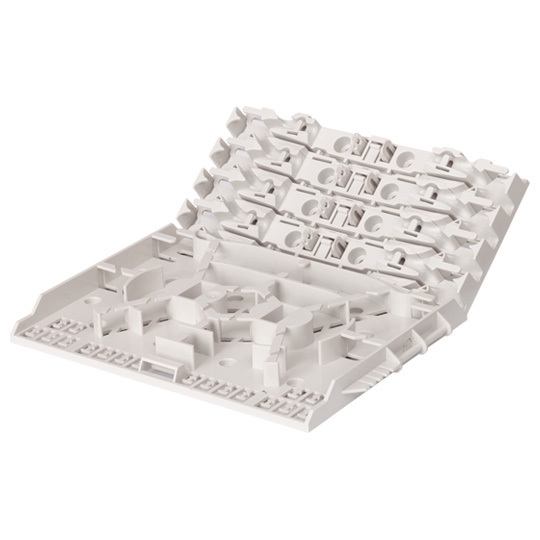

Main Base unit, only square lower plate, picture shows base with 4 Holders which can be mounted flat or at 45 deg depending of the tray configuration.

FiberRoad HOLDER KM 495530

Add to cart
Tray Supports, 1 required for every tray

FiberRoad SUPPORT STOCK 495785

Add to cart
Used to hold trays at 45 deg if main base is put flat. 2 required.

KM4 SPLICE TRAY 85AV.04/0000

Add to cart

The Fiber Optic Tray KM 4 is designed for up to 24 fibers. It can be used separately mounted on an existing mandrel or in conjunction with the FibeRoadTM System. It is compatible with all types of fibers and is very intuitive to use. A full range of Splice Holders is available to ensure compatibility.

  • Capacity of up to 24 splices
  • PLC Splitter capability (small format)
  • FibeRoadTM System compatible
  • Hinged or stackable mounting
  • No need to measure fibers before splicing
  • Heat shrink splice protector segregation feature
  • Ability to store feeder and drop fibers separately
  • Ability to change direction of the fiber storage
  • Ability to place fibers in a secondary sheath (pigtail, ø 0.9 mm)
  • Suitable for ribbon fibers

KM4 SPLICE TRAY LID 85AV.05/0000

Add to cart

KM5 Tray unit.

Add to cart

The Fiber Optic Tray KM 5 is designed to support up to 24 optical fibers and adapters. Fibers are terminated with pigtails to 12× SC or 24× LC adapter – with additional PLC Splitter capacity. Splices are housed within the internal Fiber Optic Tray KM 6. This allows for placing various types of Splice Holders. It is compatible with all types of fibers and is very intuitive to use. It can be used separately or in conjunction with the FibeRoadTM System.

  • Capacity of up to 24 splices
  • Capacity of up to 12× SC / 24× LC connector
  • PLC Splitter capability (small format)
  • FibeRoadTM System compatible
  • Hinged or stackable mounting
  • Reserve space for cable slack in the bottom part of the tray
  • Built-in patch cord management
  • Patch cord cover
  • Ability to change direction of the fiber storage
  • Ability to place fibers in a secondary sheath (pigtail, ø 0.9 mm)
  • Suitable for ribbon fibers

Note:- No adaptors supplied with this unit, order from Connectors & Adaptors in menu.

KM6 Tray Unit

Add to cart
The Fiber Optic Tray KM 6 is designed for up to 24 fibers. It can be used separately mounted on an existing mandrel or in conjunction with the FibeRoadTM System. It is compatible with all types of fibers. A full range of Splice Holders is available to ensure compatibility.
  • Capacity of up to 24 splices
  • PLC Splitter capability (small format)
  • FibeRoadTM System compatible
  • Hinged or stackable mounting
  • Ability to change direction of the fiber storage
  • Ability to place fibers in a secondary sheath (pigtail, ø 0.9 mm)
  • Suitable for ribbon fibers

KM7 Tray Unit

Add to cart

The Fiber Optic Tray KM 7 is designed to hold up to 16 optical fibers and adapters. Fibers are terminated with pigtails to 8× SC or 16× LC adapter – with additional PLC Splitter capacity. The tray has a built-in holder for 4 splices and also allows for placing various types of Splice Holders. It is compatible with all types of fibers and is very intuitive to use. It can be used separately or in conjunction with the FibeRoadTM System.

  • Capacity of up to 16 splices (a built-in holder for 4 splices)
  • Capacity of up to 8× SC / 16× LC connector
  • PLC Splitter capability (small format)
  • FibeRoadTM System compatible
  • Hinged or stackable mounting
  • Built-in patch cord management
  • Ability to change direction of the fiber storage
  • Ability to place fibers in a secondary sheath (pigtail, ø 0.9 mm)
  • Suitable for ribbon fibers

MDB M Basic Splice

Add to cart

Micos MDB M Basic Splice Only Kit

The Fiber Optic Box MDB M provides speedy and efficient customers connection and convenience with built-to-last features. The box is easy to open and close with minimum operation keeping increased water / dust ingress resistance and can be used outdoors (at distribution points on poles or walls) or indoors (as a multi-dwelling-unit or a property basement optical distribution box). It’s adaptable to all PON topologies and can accomodate any cable application with modular grommets for all cable diameters. The FibeRoadTM System provides a highly flexible series of configurations.

  • Capacity of up to 144 splices
  • Capacity of up to 48× SC / 96× LC connector
  • Multiple cable or tube entry ports on all sides of the box to increase installation flexibility
  • Ability to mix & match the Fiber Optic Trays KM 4, KM 5, KM 6, KM 7, KM 9
  • KM 4 and KM 6 for up to 24 splices (6 pcs max.)
  • KM 5 for up to 12× SC / 24× LC connector (4 pcs max.)
  • KM 7 for up to 8× SC / 16× LC connector (for GPON, 4 pcs max.)
  • KM 9 for up to 12 splices (12 pcs max.)
  • Scalable through gradual adding of trays
  • Optional placing of PLC Splitters in the management (outside a tray)
  • Up to 2 PLC Splitters ABS together with 4× KM 7
  • Hingeable (or detachable) splicing (or patching) section
  • FibeRoadTM System compatible
  • Removable internal fiber management chassis to enable maximum access
  • Support for ribbon fibers
  • Support for midspan (loop-through) cable deployments (via an express port)
  • Grommets system for cables with diameters 1.8–13 mm
  • Increased durability, impact protection and water / dust ingress resistance
  • Significant space for patch cords and cables reserves
  • Optional pole bracket
  • Suitable for all types of networks

MDB FA 144/192/288S

Add to cart
Optical distribution box MDB FA 144/192/288S is designed for the placement of 144/192/288 optical splices indoors and outdoor. The distribution box can be extended by a pole holder. A very suitable solution for spliced GPON networks
  • Maximum capacity of 144/192/288 splices
  • Cable rings
  • Placement of a large slack inside the cable management
  • Removable splicing part
  • FibeRoad system
  • Modular capacity increase
  • Possibility of placing PLC splitters inside the management (outside the trays)
  • Possibility KM 4 trays or KM 6 trays for 24 splices
  • Possibility of using ribbon fibers

 Download Data sheet

MDB FA 24/48

Add to cart
Optical distribution box MDB FA 24/48, 48/96, 72/144 is designed for the termination of 24/48/72 fibers to SC connectors or 48/96/144 fibers to LC connectors indoors and outdoors. The distribution box can be enhanced by the pole holder and it can store large cable/patchcords reserves.
  • Maximum capacity 24/48/72 SC or  48/96/144 LC
  • Ranging rings
  • Possibility of storing large cable/patchcord reserves inside the distribution box
  • Removable splicing/patching part
  • FibeRoad system
  • Possibility of modular increasing of the capacity
  • Possibility of placing PLC splittera in the management section (outside the tray)
  • Possibility to combine trays KM 4, KM 5, KM 6
  • Trays KM 4 and KM 6 for 24 splices
  • Tray KM 5 for 12 SC or 24 LC connectors
  • Hinging KM 5 tray for a better handling
  • Possibility of ribbon fibers

Download Data sheet
